PPR C crossover with coupling

The PPR C crossover with coupling is a socket-fusion PP-R fitting that carries one pipe over another crossing pipe in a single short C-shaped bridge, for hot and cold water lines in tight spaces. It is rated PN25 and made to EN ISO 15874-3 in Ø20, Ø25 and Ø32.

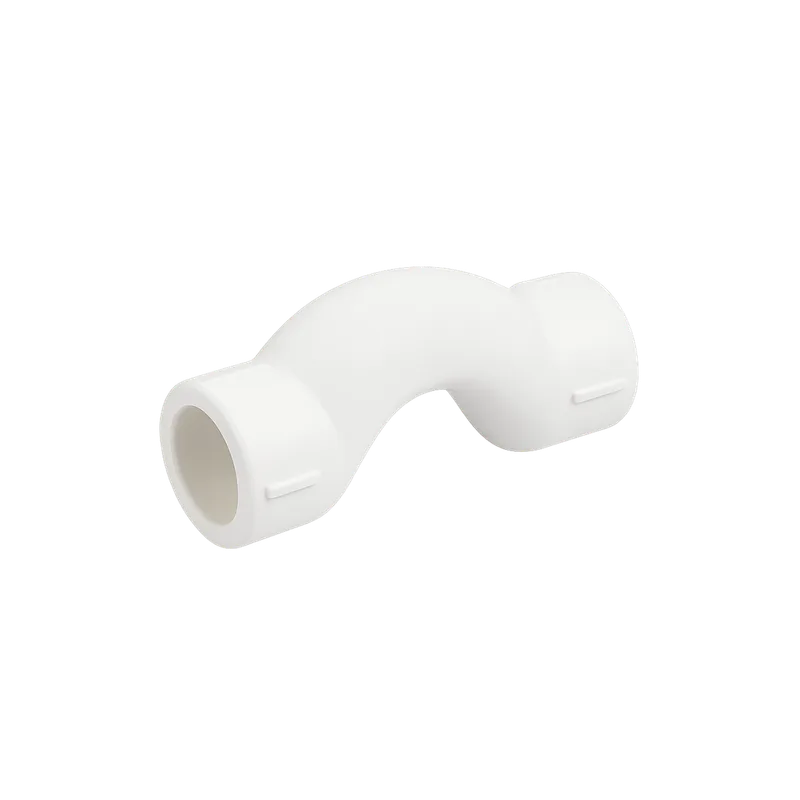

The PPR crossover with coupling is a C-shaped fitting that lets a pipe run step over another pipe that crosses its path. Installers also call it a ppr bypass bend. Its curved form makes a short bridge over the crossing line, so the run stays close to the wall or floor and fits into narrow spaces. One fitting does the job that would otherwise need several elbows and extra joints. It is made from prime-grade polypropylene random copolymer (PP-R, type 3) and conforms to EN ISO 15874-3, the standard for polypropylene fittings in hot and cold water installations. The fitting is rated PN25, with an operating temperature of 70 °C and a maximum of 95 °C. It comes in Ø20, Ø25 and Ø32 and in white, grey and green. The crossover is used in hot and cold water supply and in heating systems in homes, apartment blocks and commercial buildings. It is useful in wall chases, floor screeds and service shafts where pipes meet in the same plane. The fitting is joined by socket fusion: the pipe and the fitting are heated together on a welding machine and pushed together to form a single, permanent joint. The coupling end takes the pipe directly. It is designed to weld with THERMALINO PP-R pipes for a reliable joint and a long service life. Welding times, pressure ratings at each temperature and dimensions for each size are in the technical data sheet.
