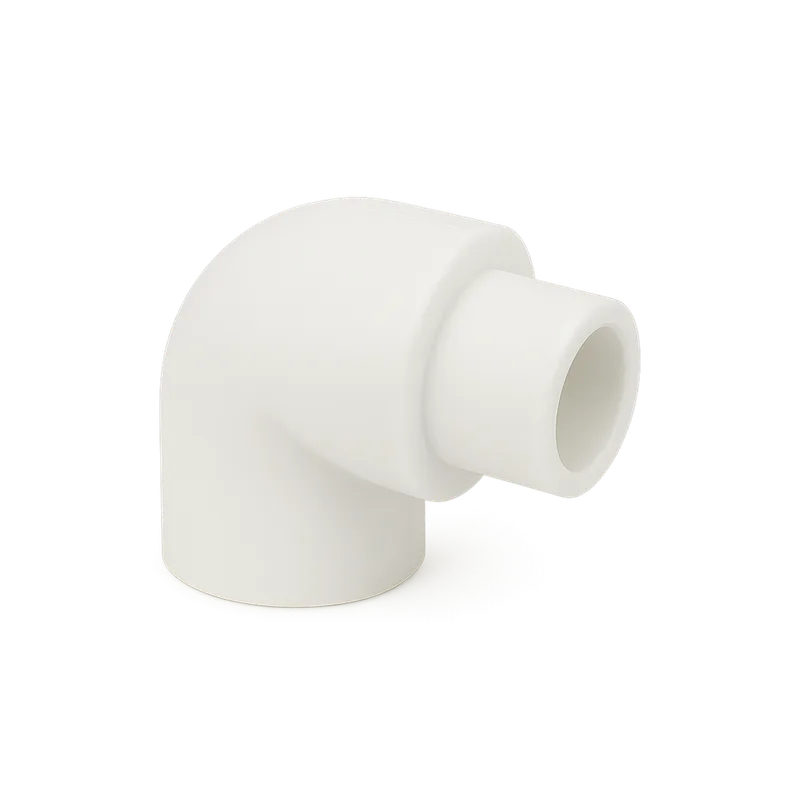

PPR Elbow 90° f/m

The PPR Elbow 90° f/m is a PP-R socket fusion fitting that turns a hot or cold water line through 90°. It has a female socket for the pipe at one end and a male spigot at the other, which fuses directly into another fitting or a valve. It is rated PN25 and comes in Ø20 and Ø25.

The PPR Elbow 90° f/m changes the direction of a PP-R line by 90°. Its two ends are different. The female end is a socket that takes the pipe. The male end is a spigot with the pipe's outside diameter, so it fuses directly into the socket of a tee, coupling, valve or other fitting. This lets the installer make a tight turn right at a valve or branch without cutting a short piece of pipe. The elbow is made of PP-R to EN ISO 15874-3, the standard for polypropylene fittings in hot and cold water installations. It is rated PN25, with an operating temperature of 70 °C and a maximum temperature of 95 °C. Pressure ratings at other temperatures and service lives are given in the technical data sheet. It comes in Ø20 and Ø25, in white or grey, and belongs to the Eternal line. The fitting is used in drinking water lines, hot water distribution and heating circuits in homes, apartment blocks and commercial buildings. It is especially useful in compact runs such as manifold connections, risers, and the short drops to valves and sanitary points. Both joints are made by socket fusion. The pipe goes into the female end, and the male end goes into the socket of the next fitting or valve. Each joint is made with a socket fusion welding tool and the heating and joining times for the size, which gives a homogeneous PP-R joint with no seals or threads. We recommend that a qualified installer makes all fusion joints and pressure-tests the finished installation.
