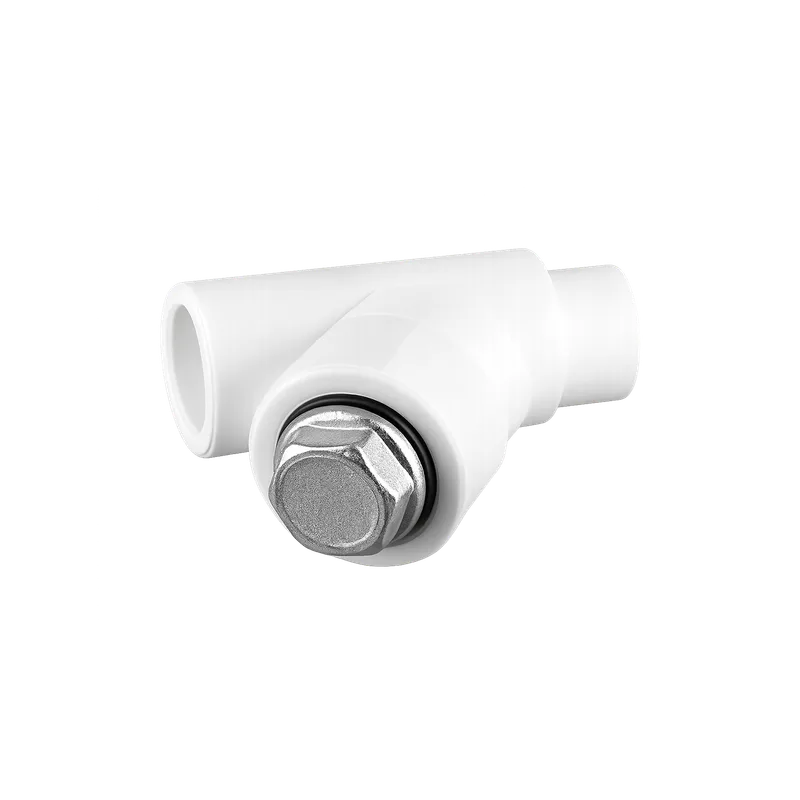

PPR Male filter 45° f/m
Dirt settles in the 45° leg and is removed by opening the blind plug, so the leg has to point downward on horizontal lines and stay accessible after installation. Isolation valves on both sides let a qualified installer clean the mesh without draining the whole system.
Images
Description and application
The THERMALINO PPR Y strainer is a PP-R fitting with a stainless mesh filter that catches coarse dirt in hot and cold water lines. It is joined by socket fusion at one end and has a brass CW617N male BSP thread at the other. Dirt collects in the 45° leg, and the blind plug is opened to clean it out during routine maintenance.
The THERMALINO PPR Y strainer (PPR Male filter 45° f/m, Eternal line) is an in-line filter fitting for PP-R pipework. A stainless mesh filter inside the body holds back coarse dirt such as sand, scale and installation debris before it can reach the valves, meters, pumps and appliances further along the line. The body is PP-R (polypropylene random copolymer, type 3), made from prime-grade raw material to EN ISO 15874-3. It has a nominal pressure of PN25, an operating temperature of 70 °C and a maximum temperature of 95 °C. The threaded insert is CW617N brass with a lead content below 2.2%, in line with European norms. The thread is a parallel BSP thread, also known as a gas thread. One end is a female socket that is joined to PP-R pipe by socket fusion and gives a homogeneous, long-lasting joint with THERMALINO PP-R pipes. The other end is a male thread that screws directly into a female-threaded valve, meter or appliance connection, so the filter can sit right in front of the equipment it protects without a separate adaptor. The fitting comes in Ø20, Ø25 and Ø32, in white. Dirt carried by the water settles in the 45° leg. During routine maintenance, the blind plug is opened and the mesh is cleaned. Install this filter with the leg pointing downward and leave enough room to reach the plug. Isolation valves upstream and downstream let it be serviced without draining the system. Pressure ratings at higher temperatures are given in the technical data sheet.
- Drinking water lines in houses and apartment buildings, ahead of meters, pressure reducing valves and appliances
- Hotels, hospitals, schools and office buildings
- Central heating circuits, protecting boilers, pumps and heat exchangers, within the rated pressure and temperature
- Heat pump and solar water circuits, subject to the temperature limits in the technical data sheet
- Cooling and chilled water lines
- Irrigation and agricultural water supply lines
- Industrial plant and process water lines, subject to the chemical resistance table in the technical data sheet
Technical summary
- SKU
- THL-E-PPR-0042
- Origin
- Made in Türkiye
- HS code
- 3917.40
- Size range
- Ø20 – Ø32
- Material
- PP-R
- Nominal pressure
- PN25
- Operating temperature
- 70 °C
- Max. temperature
- 95 °C
- Connection
- Socket fusion
- Insert material
- Brass (CW617N)
- Standard
- EN ISO 15874-3
Questions
- What does a PPR Y strainer do in a hot and cold water installation, and which equipment does it protect?
- A PPR Y strainer catches coarse dirt such as sand, scale and installation debris in a stainless mesh filter before it reaches sensitive equipment downstream. It protects water meters, pressure reducing valves, check valves, pumps, boilers, mixing valves and taps. On the THERMALINO PPR Male filter 45° f/m, the dirt collects in the 45° leg and is removed by opening the blind plug during maintenance.
- What is the correct way to install a PPR Y strainer on a horizontal water supply line so the filter can be cleaned later?
- A PPR Y strainer on a horizontal line should be installed in the direction of flow, with the 45° filter leg pointing downward and the blind plug easy to reach. With the leg pointing down, gravity holds the dirt in the leg, so it does not fall back into the flow when the plug is opened. The female end is socket-fused to PP-R pipe. The male BSP thread screws into the female thread of the valve or appliance being protected. Isolation valves on both sides let the filter be cleaned without draining the system.
- Does a PPR Y strainer reduce the flow rate or cause a pressure drop in a heating or water supply system?
- A clean PPR Y strainer causes only a small pressure drop, but the drop rises and the flow falls as the mesh fills with dirt. This is why the filter is cleaned at regular maintenance intervals, and it is often checked soon after commissioning, when new pipework releases the most debris. Flow and pressure-drop figures for each size are not given on this page, so please ask us for them when sizing a system.
- What are common problems with a PPR Y strainer in a central heating system, and how does a blocked filter show?
- The most common problem with a PPR Y strainer is a mesh clogged with dirt, which shows as reduced flow, weak heating at the far radiators, a noisy pump or slow water at the outlets. The usual causes are dirty water, debris from new or altered pipework, and cleaning intervals that are too long. Because the system is under pressure and may be hot, cleaning should be done by a qualified installer, who isolates and depressurises the line before opening the blind plug.
- Can a PN25 PPR Y strainer be used on hot water and heating lines in hotels or apartment buildings?
- Yes, the THERMALINO PPR Y strainer is rated PN25 to EN ISO 15874-3 and can be used on hot water and heating lines, with an operating temperature of 70 °C and a maximum temperature of 95 °C. The allowable pressure falls as the temperature rises, and the pressure-temperature values are given in the technical data sheet. The threaded insert is CW617N brass with a parallel BSP thread.
Range
| Size | White | Variant codes |
|---|---|---|
| Ø20✓ White | ✓ | |
| Ø25✓ White | ✓ | |
| Ø32✓ White | ✓ |
