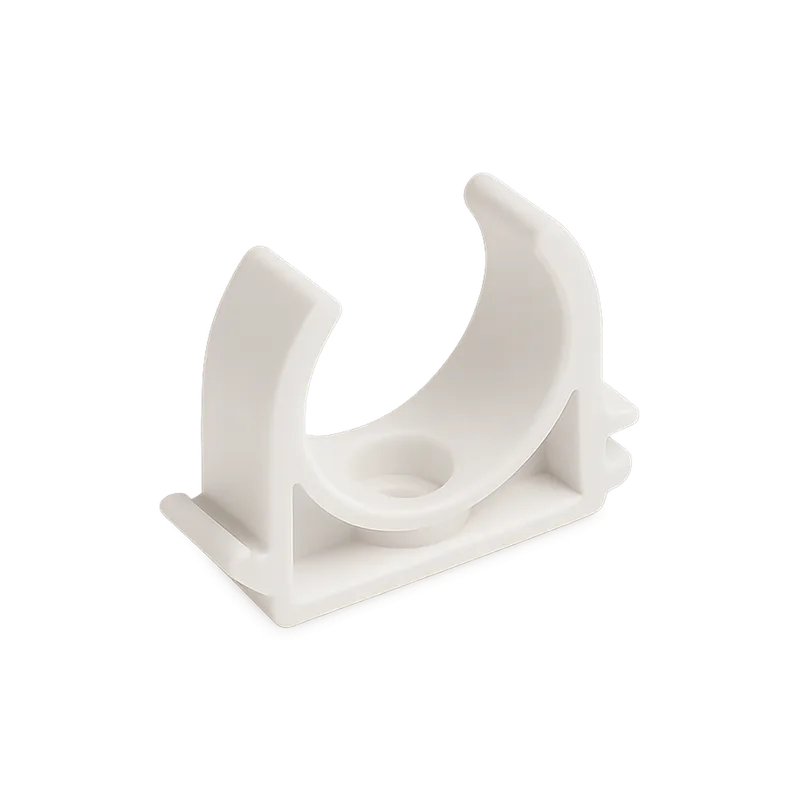

PPR Single clamp

The PPR Single clamp is a PPR pipe clamp made of PP-R that fixes one Ø20, Ø25, Ø32 or Ø40 PP-R pipe to a wall or ceiling and keeps the run straight and supported. It stops hot and cold water lines from sagging or bending over time, and it comes in white, grey or green.

The PPR Single clamp from the Eternal line is a PPR pipe clamp that holds one PP-R pipe in place against a wall, ceiling or other fixed surface. It is part of the THERMALINO PPR Pipeline Systems range and is available for pipe diameters Ø20, Ø25, Ø32 and Ø40. This polypropylene pipe clamp is made of prime-grade polypropylene random copolymer (PP-R, type 3), the same material family as the pipes it supports. It comes in white, grey and green, so the clamps can be matched to the colour of the pipe system on site. Clamps are an essential part of any PP-R installation. Because PP-R pipe is lighter and more flexible than metal pipe, an unsupported run can sag or bend between fixing points over time. This is especially true on hot-water and heating lines, where the material softens and expands. Fitting clamps at suitable intervals keeps the pipework straight, takes load off the welded joints and keeps exposed runs neat. The clamp is screwed to the wall or ceiling with fixings suited to the surface, and then the pipe is fitted into it. Mark out the pipe route first so that the run stays straight. Clamp spacing depends on the pipe diameter, the water temperature and whether the run is horizontal or vertical. Hot lines need the clamps closer together than cold lines.
